This Garden Railway Company Union Pacific No. 837 is a Gauge 1, 1:32 scale model of the railroad’s FEF-3 class 4-8-4 steam locomotive. The highly detailed brass model was built in Korea by Samhongsa and represents UP No. 837 in its two-tone gray passenger-era appearance.
The model is exceptionally large: the locomotive and tender together measure approximately 43–44 inches long and weigh about 37 pounds. TrainReference’s original photographs document the locomotive, tender, running gear and lighting details.
At a Glance
- Commissioned by: Garden Railway Company
- Builder: Samhongsa, Korea
- Prototype: Union Pacific FEF-3
- Road number: 837
- Wheel arrangement: 4-8-4 Northern
- Scale: 1:32
- Gauge: Gauge 1
- Construction: Brass
- Production: 66 models documented for the No. 837 edition
- Drive: Dual can motors with coasting transmission
Garden Railway Company / Samhongsa UP 837
This model was produced for the Garden Railway Company and built in Korea by Samhongsa. It is a factory-painted Gauge 1 model of Union Pacific FEF-3 No. 837.
Specialist documentation identifies a production run of 66 examples of the No. 837 model. Surviving examples carry individual production numbers, although the serial number of the TrainReference example is not visible in the available photographs.
Mechanical and Lighting Features
The Samhongsa model was engineered as an operating electric locomotive rather than solely as a static display piece. Documented features include:
- Dual can motors
- Geared coasting-drive transmission
- Equalized running gear
- Operating headlight
- Operating marker lights
- Operating Mars light
- Cab lighting
- Extensive cab interior detail
- Opening and operating detail parts
The original TrainReference description also notes separate lighting controls and a transmission slip or coasting feature that allows the locomotive to roll freely.
Union Pacific FEF-3 No. 837
The prototype represented by the model was one of Union Pacific’s famous FEF-series 4-8-4 steam locomotives. The designation FEF came from “four-eight-four,” Union Pacific’s classification for its Northern-type locomotives.
No. 837 belonged to the final FEF-3 group, Nos. 835 through 844. These locomotives were built by the American Locomotive Company for Union Pacific in 1944.
The FEF locomotives were designed for high-speed passenger service but were capable of handling demanding assignments across the Union Pacific system. They became some of the railroad’s best-known steam locomotives.
Two-Tone Gray Passenger Appearance
The Samhongsa model represents No. 837 in Union Pacific’s distinctive two-tone gray passenger-era paint scheme, with yellow striping and lettering.
The TrainReference photographs show the finish particularly well on the large tender, where the gray body, yellow striping and UNION PACIFIC lettering are clearly visible.
A Large Gauge 1 Model
At 1:32 scale, the model is dramatically larger than typical HO or O scale locomotives. The original TrainReference description records a weight of approximately 37 pounds and an overall locomotive-and-tender length of approximately 43 inches.
Other documented examples list the locomotive at roughly 26 inches and the tender at approximately 18 inches, consistent with the dimensions recorded for the TrainReference model.
Identifying the Model
The principal identifiers for this model are:
- Garden Railway Company
- Built by Samhongsa in Korea
- Union Pacific No. 837
- FEF-3 4-8-4
- Gauge 1 / 1:32 scale
- Two-tone gray Union Pacific finish
- Dual-motor coasting drive
- Operating lighting system
The production number of this particular TrainReference example has not been established from the available photographs.
Original Photos

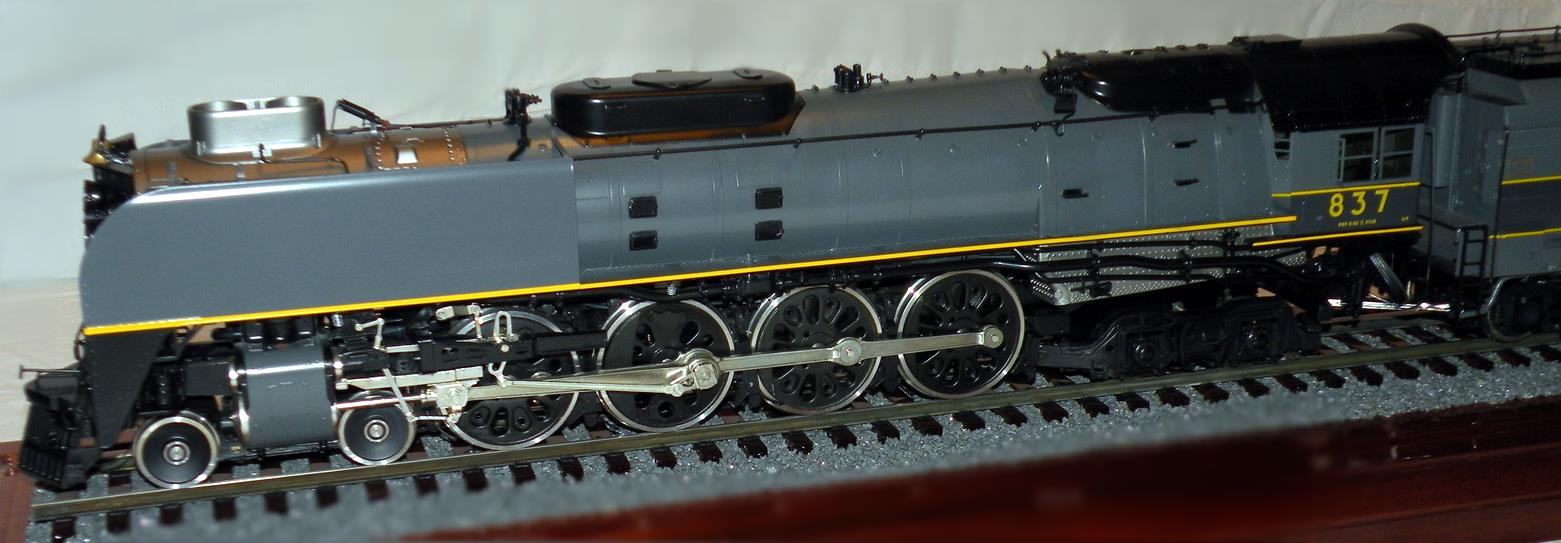

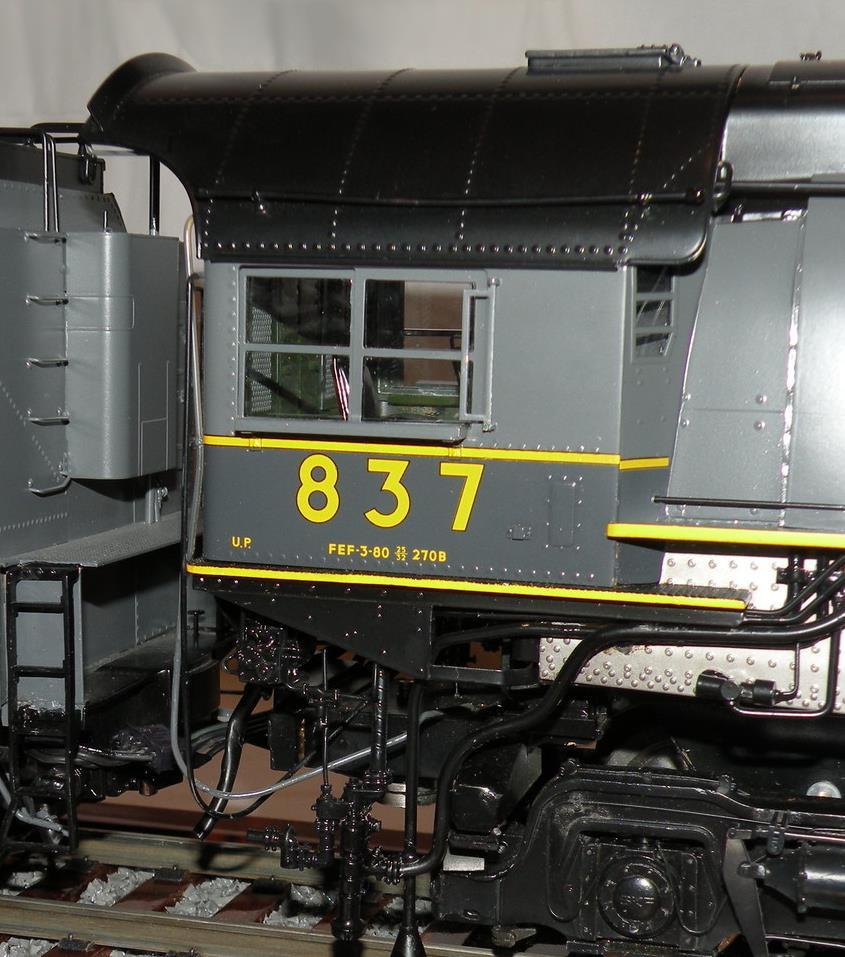

These photographs show the Garden Railway Company / Samhongsa Union Pacific No. 837 originally documented by TrainReference.
